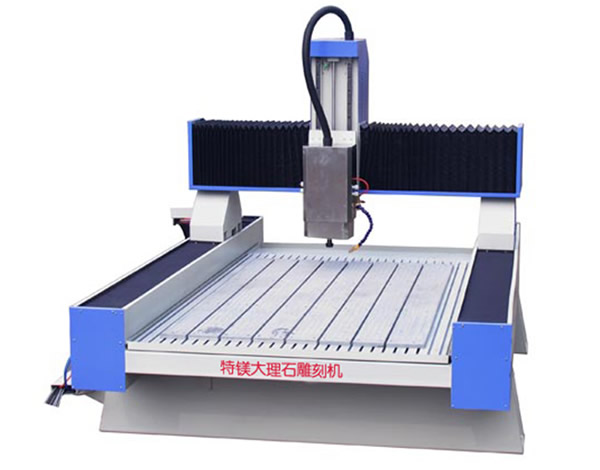

TM-9015 SD CNC stone engraver

TM-9015 SD CNC stone engraver
Basic Parameters:

Applicable industry:
Tombstone carving, antique wall brick carving, stone carving, stone material craft process tea set, glass sculpture, marble sculpture
Application materials:
The industrial rectangular square pipe welding, eliminate the welding stress, high precision gantry machining center, to ensure the accuracy of the body itself, rigidity and stability.

Product Features:
1, the PMI original double screw, original nut driver or high precision rack drive, PMI original guide, effectively guarantee the machine geometric accuracy and machining precision, and at the same time, effectively reduce the vibration and chatter machine operation and the improvement of the machining the workpiece surface.
2, about machine support, bearing, flange holder, Z to assembly, and other key parts are made of cast iron tempering process, to ensure that no deformation and design precision, installation process using instrument measurement, ensure the installation accuracy in place.
3, XY soft dust cover, effectively prevent cutting waste and dust to guide or screw pollution caused by loss of accuracy.
4, in the course of processing, automatic water spray, work platform have pool guarantee machine dust will not disorderly splash, avoid the processing temperature is too high in cutting knife.
Product Parameters:
Model TM-9015SD
Working area 900×1500×180mm
Spindle power Air cololing3000W
Spindle speed 6000~24000rpm
Driver Step driver
Blade diameter ∮3.175,∮6, ∮12.7mm
Machine structure Cast square tube
Driver system XZ imported screw,Y imported double-screw
XYZrail guide Imported linear guide
Machine precision <0.1/300mm
Speed 8000mm/min
Data transmit Computer
Services:
1 FREE for users to provide relevant technical guidance and advice; according to the user equipment and requirements for use of the environment to provide relevant recommendations;
2 FREE delivery device (freight delivery shall bear responsibility for the customer is responsible for pick-unloading charges customers themselves);
3 FREE onsite installation and commissioning services;
4 FREE training of personnel;
5 YEAR warranty expires, the warranty period, only charge labor and parts costs; guaranteed lifelong service.
